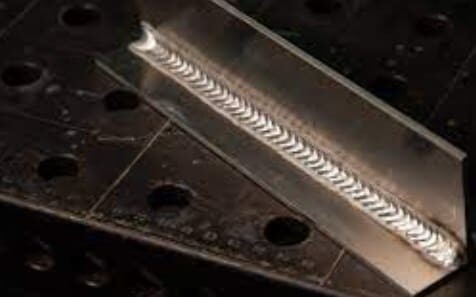

I. Why MIG Welding Dominates Modern Fabrication?

MIG welding, short for Metal Inert Gas welding, formally known as Gas Metal Arc Welding (GMAW), has revolutionized metal fabrication since its development in the WWII era. Today, it accounts for over 50% of all industrial welding applications due to its unbeatable speed, versatility, and accessibility.

Industry Insights:

1. The Global Welding Equipment Market Size was valued at USD 18.50 billion in 2022, and the Worldwide Welding Equipment Market Size is expected to reach USD 29.28 billion by 2032, according to a research report published by Spherical Insights & Consulting. Among which, MIG systems lead the growth.


2. Automotive manufacturers prefer MIG for its 3-4x faster deposition rates compared to stick welding.


3. Modern inverter-based MIG machines can achieve 90% energy efficiency, reducing operational costs.


What This Guide Covers:

? Professional setup techniques used in shipbuilding and aerospace

? Little-known gas mixtures that can transform weld quality

? Advanced troubleshooting for common defects

? Proprietary techniques from certified welding inspectors

II. The Science Behind MIG Welding

1) Physics of the Arc

The MIG process creates an electric arc reaching 6,500°F (3,600°C) - hotter than lava flow. This melts both the consumable wire electrode (typically ER70S-6 for mild steel) and base metal, while shielding gas (usually Ar/CO? mix) prevents atmospheric contamination.

Key Metallurgical Considerations:

• Weld Pool Dynamics: Surface tension and Marangoni effects dictate bead shape.

• Heat Affected Zone (HAZ): Can extend 0.25-0.5" from weld, requiring proper pre/post-heat treatment for high-strength steels.

• Solidification Rates: Faster cooling increases hardness but may cause hydrogen cracking.

2) Comparative Analysis:

III. Professional-Grade Machine Configuration

Industrial MIG System Components:

1) Power Source:

• Transformer-rectifier vs. inverter technology

• Pulse MIG capabilities for aluminum (400Hz modulation)

2) Wire Feeding System:

• Push-pull guns for aluminum (up to 25ft leads)

• Four-roller drive systems for hard wires

3) Cooling Options:

• Air-cooled (200-300A max)

• Liquid-cooled (150-600A+ continuous)

Calibration Protocol:

1. Verify wire feeder tension using spring scale (3-5lb pull force)

2. Check liner alignment with wire straightness test

3. Calibrate gas flow with floating ball flowmeter

4. Validate voltage output with digital multimeter

IV. Advanced Shielding Gas Strategies

Specialty Gas Blends

• 98%Ar/2%O?: For stainless steel (prevents sugaring)

• 90%He/7.5%Ar/2.5%CO?: Aluminum spray transfer

• Stargon? Tri-Mix: Reduces spatter by 40% in robotic applications

Gas Flow Optimization:

• Laminar flow requirements: Re < 2300

• Nozzle diameter vs. flow rate calculations: Q = (π × D2 × v)/4

Where:

Q = Flow rate (CFH)

D = Nozzle diameter (inches)

v = Gas velocity (fpm)

V. Precision Control Systems

Synergic MIG Programming

Modern power sources feature:

• Adaptive voltage control (AVC)

• Real-time inductance adjustment


• Burn-back compensation algorithms

Robotic Welding Parameters:

VI. Machine Maintenance Mastery

Preventative Maintenance Schedule

Daily:

• Clean drive rolls and liner

• Check contact tip orifice

• Verify gas system integrity

Monthly:

• Recalibrate wire feed encoder

• Test ground circuit resistance (<0.1Ω)

• Inspect transformer cooling fins

Annual:

• Replace all consumables

• Power source capacitor testing

• Full system diagnostic

VII. Next-Level Safety Protocols

Laser Safety Integration

• IR/UV filtering lenses (Shade 5+)

• Fume extraction velocity requirements:

• 100-150 fpm capture velocity

• 800-1000 CFM for booth systems

NFPA 51B Compliance Checklist:

• ? Fire watch procedures

• ? Hot work permit system

• ? Combustible gas monitoring

VIII. Certified Welding Techniques

AWS D1.1 Structural Welding Code

• Backstep Technique: For distortion control

• Weave Pass Sequencing: 50% overlap rule

• Interpass Temperature Control: 250-400°F for HSLA steels

Procedure Qualification Records (PQRs):

• WPS development protocol

• Macroetch testing standards

• Bend test acceptance criteria

IX. Metallurgical Preparation

Surface Engineering

• White metal blast cleaning: Sa 3 level

• Chemical passivation: For corrosion-resistant alloys

• Laser ablation: For zinc-coated steels

Fit-Up Tolerances:

X. Industrial Case Studies

1) Automotive Body-in-White

• Challenge: Galvanized steel porosity

• Solution: 92%Ar/8%CO? with 0.8mm wire

• Result: 0% porosity at 45m/min travel speed

2) Pressure Vessel Fabrication

• Challenge: Hydrogen cracking

• Solution: 350°F preheat + ER100S-G wire

• Result: 100% UT pass rate

3) Additive Manufacturing

• Challenge: Wire feeding consistency

• Solution: Closed-loop servo control

• Result: ±0.002" deposition accuracy

Conclusion

MIG welding is a skill that improves with practice. By following these MIG welding tips, you’ll minimize defects, reduce spatter, and produce professional-quality welds. Whether you're a hobbyist or a seasoned welder, mastering these fundamentals will make your projects faster, stronger, and more efficient.
