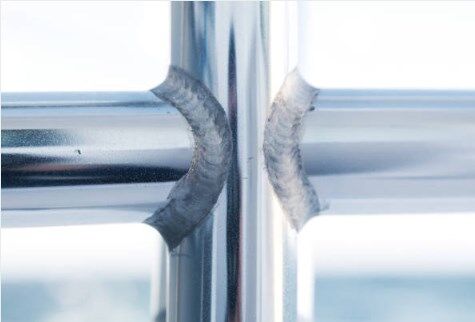

Aluminum tubing is a popular choice in industries like aerospace, automotive, and marine due to its lightweight, corrosion-resistant, and versatile properties. However, welding aluminum tubing can be challenging due to its high thermal conductivity, low melting point, and tendency to form oxide layers. This guide will walk you through the best practices, tips, and tricks for welding aluminum tubing, helping you achieve professional-quality results.
I. Why TIG Welding is Ideal for Aluminum Tubing
When it comes to welding aluminum tubing, TIG (Tungsten Inert Gas) welding is the most commonly used and effective method. TIG welding uses a non-consumable tungsten electrode to create an arc between the electrode and the workpiece, while a shielding gas (usually argon) protects the weld pool from atmospheric contamination. Here’s why TIG welding is the go-to choice for aluminum tubing:
-
High-Quality Welds: TIG welding produces welds with minimal distortion and spatter, ensuring a clean and aesthetic appearance.
-
Precise Control: It allows for precise control over heat input and weld penetration, making it ideal for thin and complex shapes.
-
Versatility: TIG welding can be used for a wide range of aluminum alloys and thicknesses.
II. Step-by-Step Guide to TIG Welding Aluminum Tubing
To achieve optimal results when TIG welding aluminum tubing, follow these steps:
1. Prepare the Aluminum Tubing：
-
Clean the Surface: Use a stainless steel brush or a solvent to remove dirt, oil, grease, or oxide layers. Aluminum oxide has a higher melting point than aluminum and can interfere with weld quality and strength.
-
Choose the Right Filler Metal: Select a filler metal that matches the chemical composition and melting point of the aluminum alloy you’re working with. Refer to the Guide for Aluminum and its Alloy Welding by Megmeet Welding for more information.
2. Set Up Your TIG Welding Machine：
-
Adjust the machine according to the specifications of the aluminum tubing, including diameter, thickness, joint type, and position. Download Megmeet Welding product specifications for detailed guidelines on current, voltage, polarity, gas flow rate, and electrode size.
3. Welding Technique：
-
Hold the torch at a 10-15 degree angle from the vertical and maintain a consistent distance of about 3-4 mm between the electrode and the workpiece.
-
Keep the filler rod close to the weld pool and feed it smoothly and steadily.
-
Move the torch along the joint with a uniform speed and avoid stopping or pausing at any point.
4. Post-Welding Care：
III. Common Challenges in TIG Welding Aluminum Tubing
Welding aluminum tubing can present several challenges, including:
-
Porosity: Caused by contamination or improper shielding gas flow.
-
Lack of Penetration: Insufficient heat input or incorrect polarity settings.
-
Distortion: Uneven heating or poor joint design.
To overcome these challenges, ensure proper preparation, use high-quality equipment, and maintain consistent welding parameters.
IV. Choosing the Right TIG Welding Equipment
Selecting the right TIG welding machine is crucial for achieving high-quality welds. Megmeet Welding offers a wide range of advanced TIG welding products, including:
-
MetaTIG 315/400/500 ACDC Welding Machines
-
MetaTIG 315/400/500 DC Welding Machines
Why Choose Megmeet Welding?
-
Advanced Technology: Features like inverter technology, digital control panels, and pulse functions ensure stable and precise output.
-
Ease of Use: User-friendly designs and adjustable settings make it easier to achieve professional-quality welds.
-
Durability and Safety: Overload protection and robust construction ensure long-term reliability.
-
Certifications: Megmeet Welding products are certified by ISO 9001, CE, CCC, and other international standards.
V. Tips for Achieving Professional-Quality Welds
-
Practice Makes Perfect: TIG welding requires skill and experience. Start with scrap pieces to hone your technique.
-
Use High-Quality Consumables: Choose the right tungsten electrodes and shielding gases for optimal results.
-
Maintain Proper Welding Parameters: Refer to your machine’s specifications and adjust settings based on the thickness and type of aluminum tubing.
Conclusion: Mastering the Art of Welding Aluminum Tubing
Welding aluminum tubing is a skill that requires patience, practice, and the right equipment. By following the tips and best practices outlined in this guide, you can overcome common challenges and achieve professional-quality welds. Whether you’re working on a high-performance automotive project or a custom marine application, Megmeet Welding has the tools and expertise to help you succeed.
Ready to Take Your Welding to the Next Level?
Visit Megmeet Welding at http://m.wenceng.cn/en to explore their range of TIG welding machines and accessories. With over 15 years of experience in the industry, Megmeet Welding is your trusted partner for all your welding needs. Contact them today at +86-755-86600555 or welding@megmeet.com to learn more.
